Connection set for MComMains cable (24 V DC, RJ12, RS485) for the connection of the MCom controllers to the power supply.
Please note: For the function of a MC system with up to 8 controllers, one connection set is necessary.
Learn MoreOur offer is exclusively aimed at corporate clients.
-
PAW actuator SR10due to the removable scale it is suited for flow on the right or left side,
easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for halting assembly on the PAW mixing valve,
for weather-compensated control, change-over switch for manual / automatic operation
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 3.5 W
Torque: 10 Nm
Setting time for 90°: 140 s
Learn MoreOur offer is exclusively aimed at corporate clients.
-
PAW actuator SR10 for DN 40due to the removable scale it is suited for flow on the right or left side, easy assembly and disassembly thanks to the smart PAW snap-in mechanism, with 1.5 m cable and mounting set for halting assembly on the PAW mixing valve, for weather-compensated control, change-over switch for manual / automatic operation
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 3.5 W
Torque: 10 Nm
Setting time for 90°: 140 s
Learn MoreOur offer is exclusively aimed at corporate clients.
-
PAW actuator SR10 for DN 50due to the removable scale it is suited for flow on the right or left side, easy assembly and disassembly thanks to the smart PAW snap-in mechanism, with 1.5 m cable and mounting set for halting assembly on the PAW mixing valve, for weather-compensated control, change-over switch for manual / automatic operation
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 3.5 W
Torque: 10 Nm
Setting time for 90°: 140 s
Learn MoreOur offer is exclusively aimed at corporate clients.
-
PAW actuator SR2easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for snap-in assembly on the PAW mixing valve,
for weather-compensated control,
due to the removable scale it is suited for the flow on the right or left side
change-over switch for manual / automatic operation
Learn MoreOur offer is exclusively aimed at corporate clients.
-
PAW actuator SR5Change-over switch for manual / automatic operation,
easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for snap-in assembly on the PAW mixing valve,
for weather-compensated control,
due to the removable scale it is suited for the flow on the right or left side
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 2.5 W
Torque: 5 Nm
Setting time for 90°: 140 s
Learn MoreOur offer is exclusively aimed at corporate clients.
-
MCom communication setFor WiFi communication with an Apple or Android terminal.
The communication module is the condition for for the automatic hydraulic balancing of the radiators via the PAW app.
You can get the corresponding app in the App Store or Google Play Store by searching for "PAW MCom".
Learn MoreOur offer is exclusively aimed at corporate clients.
-
PAW Constant temperature controller PKR6Item number : 703601
Easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 2 m cable and safety plug,
incl. mounting set for snap-in assembly on the PAW mixing valve and Pt1000 screw-in sensor G¼" for the flow ball valve,
change-over switch for manual / automatic operation
controller settings for direction of rotation, operation mode and nominal temperature can be adjusted at the display
Technical data
Power supply: 230 V - 50 Hz
Power consumption: 3 W
Torque: min. 6 Nm
Setting time 90°: 120 s
Learn MoreOur offer is exclusively aimed at corporate clients.
-

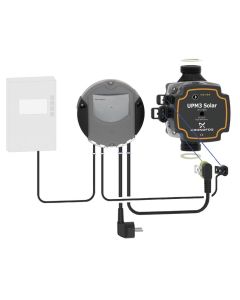

Replacement set for solar pumpsFor changeover to high-efficiency pumps in PAW solar stations and PAW solar transfer stations according to the ErP directives 811/2013 and 812/2013. Learn MoreOur offer is exclusively aimed at corporate clients.
