Friwa
DHW
technology

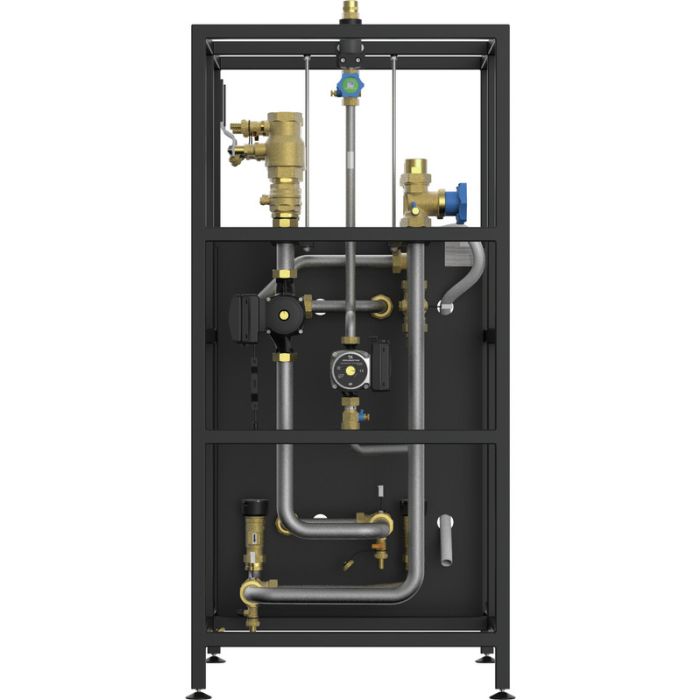

FriwaMega up to 123 l/min, FC3.10
Domestic hot water preparation operating on the principle of a flow-type water heater
Withdrawal capacity: 4-123 l/min
Circulation: optional
Withdrawal capacity: 4-123 l/min
Circulation: optional
paw_waermetauscher_werkstoff | Plates + connecting pieces: stainless steel, coating (optional): based on silica, solder: copper |
---|
Operating data
Max. operating temperature:
95 °C
Max. operating pressure primary:
3 bars
Max. operating pressure secondary:
10 bars
Max. operating temperature:
95 °C
Kvs value primary:
11.8
Kvs value secondary:
10
Max. flow rate:
123 l/min
Transmission performance:
324 kW
Min. flow rate:
4 l/min
Note:
The CE-conformity of the module has been certified according to DIN EN 60335 and SVGW.

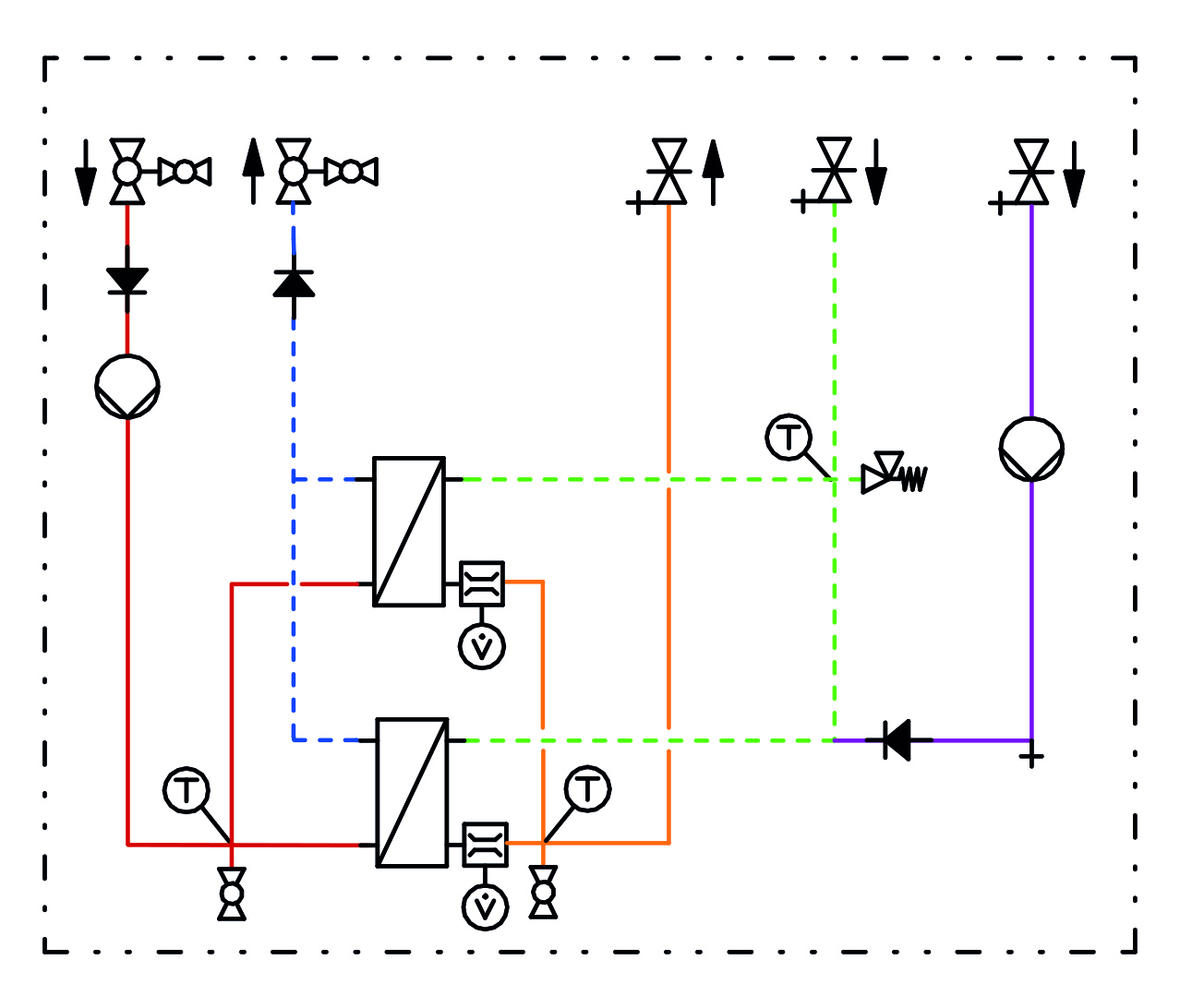

Equipment
Controller:
FC3.10
Check valves:
primary: 2 x 450 mm wc
Sensors:
primary: 1 x Pt1000 / secondary: 2 x Pt1000 / 2 x flow meter
Controller:
FC3.10
Circulation:
optional
Opening pressure check valve:
450 mm wc
Dimensions
Connection circulation line:
1" ext. thread / 1¼" ext. thread
Connection secondary:
1¾" ext. thread
Centre distance secondary:
158 mm
Height:
1499 mm
Width:
660 mm
Nominal diameter:
DN 32 (1¼")
Depth:
920 mm
Installation length:
1205 mm
Connection primary:
1½" int. thread
Connection secondary:
1¾" ext. thread
Connection circulation line:
1" ext. thread / 1¼" ext. thread
Centre distance primary:
158 mm
Centre distance secondary:
158 mm
Materials
Valves and fittings:
Brass
Gaskets:
EPDM / AFM34
Insulation:
EPP
Piping:
Stainless steel
Check valves:
Brass
Design data (Friwa)
Cold water inlet temperature:
10 °C
Withdrawal capacity Friwa:
Withdrawal of hot water with 45 °C at the preset hot water temperature
Withdrawal capacity: min. flow rate:
4 l/min
Withdrawal capacity: max. flow rate:
123 l/min
Withdrawal capacity: flow rate:
130 l/h
133 l/min
Max. transmission performance 1:
300 kW
Max. transmission performance 2:
316 kW
Max. transmission performance 3:
324 kW
necessary primary flow temperature 1:
60 °C
necessary primary flow temperature 2:
70 °C
Max. withdrawal capacity:
300 kW
Field of application: Domestic hot water preparation operating on the principle of a flow-type water heater
Application range: In solar thermal systems In systems with solid fuel boilers, oil or gas boilers
Connection to a buffer tank
As a 2-fold cascade up to 246 l/min (as per SPF LK 1)*
No domestic hot water tank necessary
Energy for heating the water is taken from the buffer tank
Operating data:
Max. operating pressure: primary = 3 bars, secondary = 10 bars
Max. operating temperature: 95 °C
Min. flow rate: 4 l/min
Max. flow rate: 123 l/min
The CE-conformity of the module has been certified according to DIN EN 60335 and SVGW.
*Indication of performance as per SPF test procedure
Application range: In solar thermal systems In systems with solid fuel boilers, oil or gas boilers
Connection to a buffer tank
As a 2-fold cascade up to 246 l/min (as per SPF LK 1)*
No domestic hot water tank necessary
Energy for heating the water is taken from the buffer tank
Operating data:
Max. operating pressure: primary = 3 bars, secondary = 10 bars
Max. operating temperature: 95 °C
Min. flow rate: 4 l/min
Max. flow rate: 123 l/min
The CE-conformity of the module has been certified according to DIN EN 60335 and SVGW.
*Indication of performance as per SPF test procedure
