Accessories DN 25
-

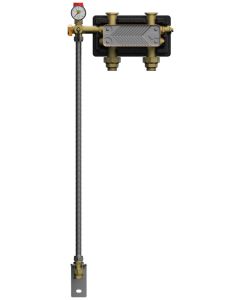

System separation DN 25 (1") for HeatBloC®sFunction: Separation of the boiler circuit and the consumer circuit
Field of application:
for radiant panel heating systems with plastic pipes for the protection of new boilers in older heating installations
Recommended application range:
Min. residual head: 1.5 m
Temperature difference primary: 60-50 °C
Temperature difference secondary: 35-45 °C
Range of performance:
depending on the pump of the heating circuit used and the amount of plates of the heat exchanger
16 plates: up to 20 kW, 10 K up to 1720 l/h
30 plates: up to 23 kW, 10 K up to 2010 l/h
40 plates: up to 25 kW, 10 K up to 2150 l/h
Learn MoreHeatBloC®
Heating
technology
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
Immersion sleeves ½" ext. threadfor the installation of the temperature sensors (d = 6 mm) in the storage tank, in the collector and the hydraulic separator.
Attention: suitable for ball valves until 2016!
566001: self-sealing with, o-ring, polished brass, for sensor, T = 30 mm
566002: standard, chromed brass, for sensor, T = 60 mm
5660021: standard, chromed brass, with valve extension (25 mm), for sensor, T = 60 mm
566003: standard, chromed copper, for sensor, T = 100 mm
566004: standard, chromed copper, for sensor, T = 150 mm
Learn MoreSolex|SolarBloC®
Solar
thermal
systems
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
Valves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
PAW actuator SR5Change-over switch for manual / automatic operation,
easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for snap-in assembly on the PAW mixing valve,
for weather-compensated control,
due to the removable scale it is suited for the flow on the right or left side
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 2.5 W
Torque: 5 Nm
Setting time for 90°: 140 s
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
PAW actuator SR10due to the removable scale it is suited for flow on the right or left side,
easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for halting assembly on the PAW mixing valve,
for weather-compensated control, change-over switch for manual / automatic operation
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 3.5 W
Torque: 10 Nm
Setting time for 90°: 140 s
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
PAW Weather compensated controller PWR6Same type as the PAW constant temperature controller PKR6 (art.no. 703601), but for the use of a weather-compensated heating circuit.
The package includes the outdoor sensor, the flow sensor as well as the source sensor. This ensures that the mixing valve or the heating circuit can be operated in an autarkic manner and
without boiler control.
In addition, it is possible to set the room temperature centrally in the flat via a room based remote control (art.no. 1359501).
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-

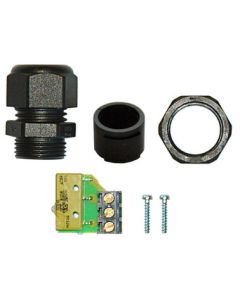

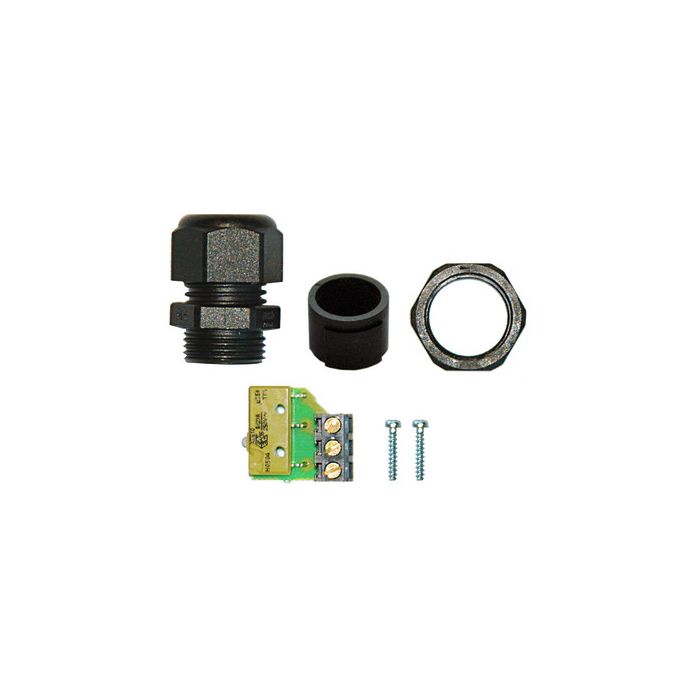

Supplementary switchItem number: 705101
The limit switch is a micro switch.
For the assembly in the actuators SR5 and SR10-24/3P. Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-

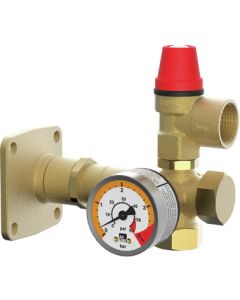

Safety set distribution manifold DN 25For the installation on modular distribution manifolds DN 25 (as of 2017),
with a connection of ¾" int. thread (sealed with plug) for the installation of the connection set for the expansion tank (item no. 7507),
pressure relief valve ½" x ¾", 3 bars, up to 50 kW, pressure gauge 0-4 bars
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
Wall bracket DN 25 - DN 32Galvanised mounting bracket for wall assembly of HeatBloC®s.
Mount HeatBloC®s on mounting bracket for an easy assembly.
Learn MoreHeatBloC®
Heating
technology
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-

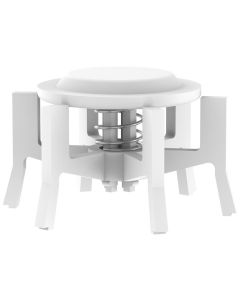

Non-return valve for the mixing valve returnTo be inserted into the PAW mixing valve.
Prevents unwanted circulation for example when various mixing valves are connected to one distribution manifold.
The shutoff valve can be simply inserted into the mixing valve.
Not for HeatBloC® K38 DN 25.
Learn MoreHeatBloC®
