  1. Floor bracket
    Floor bracket
    Components: 2 floor brackets (galvanized steel), 4 wall plugs, 4 screws, 2 screws for fixing the distribution manifold onto the floor brackets
    Height = adjustable 1050 - 1080 mm, for shortening simply cut off

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  2. Wall bracket DN 40
    Wall bracket DN 40
    Components: Wall bracket, 2 gaskets, mounting equipment,
    distance of the pipe axis to the wall A = 270 mm

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  3. Wall bracket set for modular distribution manifold DN 40
    Wall bracket set for modular distribution manifold DN 40
    Components: 2 floor brackets (galvanized steel), 4 wall plugs, 4 screws, 2 screws for fixing the distribution manifold onto the floor brackets
    Distance of the pipe axis to the wall: A = 270 mm

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  4. Extension module DN 40
    Extension module DN 40
    for the extension of already existing PAW HeatBloC® systems, with insulation

    The installation may only be made by qualified experts.

    A = 160 mm H = 170 mm L = 320 mm

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

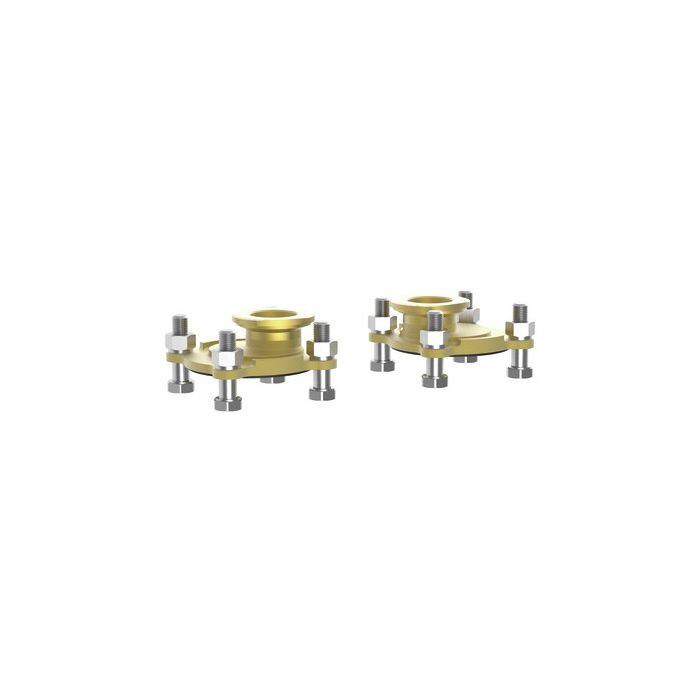

  5. Reducer set DN 40 - DN 32
    Reducer set DN 40 - DN 32
    Reducer flanges made of brass for the assembly of a pump DN 32* in HeatBloC®s DN 40 or for connection of a single HeatBloC® DN 32 on a distribution manifold DN 40.
    One side flange DN 40 - PN 6, other side flange for 2" union nut, flat sealing.

    Reduction of the centre distance from 160 mm to 125 mm, installation height = 35 mm.

    *For the installation of a DN 32 pump 2x nut and seals are required additionally (2x N00121).

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  6. Blind flange DN 40
    Blind flange DN 40
    PN 6, as per DIN 2527, with 1 gasket, 4 screws and 4 nuts

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  7. Extension set for low-loss header DN 40
    Extension set for low-loss header DN 40
    for conversion into a distribution manifold with integrated hydraulic separator (low-loss header).

    Consisting of:
    1 distance ring for a resistance-free connection of flow and return chamber, incl. screws and o-rings.

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  8. Screwed flange DN 40/50
    Screwed flange DN 40/50
    PN 6, acc. to DIN 2565, steel, black

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  9. PAW actuator SR10 for DN 40
    PAW actuator SR10 for DN 40
    due to the removable scale it is suited for flow on the right or left side, easy assembly and disassembly thanks to the smart PAW snap-in mechanism, with 1.5 m cable and mounting set for halting assembly on the PAW mixing valve, for weather-compensated control, change-over switch for manual / automatic operation

    Technical data

    Electrical connection: 230 V / 50 Hz
    Input power: 3.5 W
    Torque: 10 Nm
    Setting time for 90°: 140 s

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  10. Weld neck flange DN 40/50
    Weld neck flange DN 40/50
    PN 6, acc. to DIN 2631, steel, black

    Learn More

    HeatBloC®

    Heating

    technology

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.
