CoolBloC

Heating/Cooling

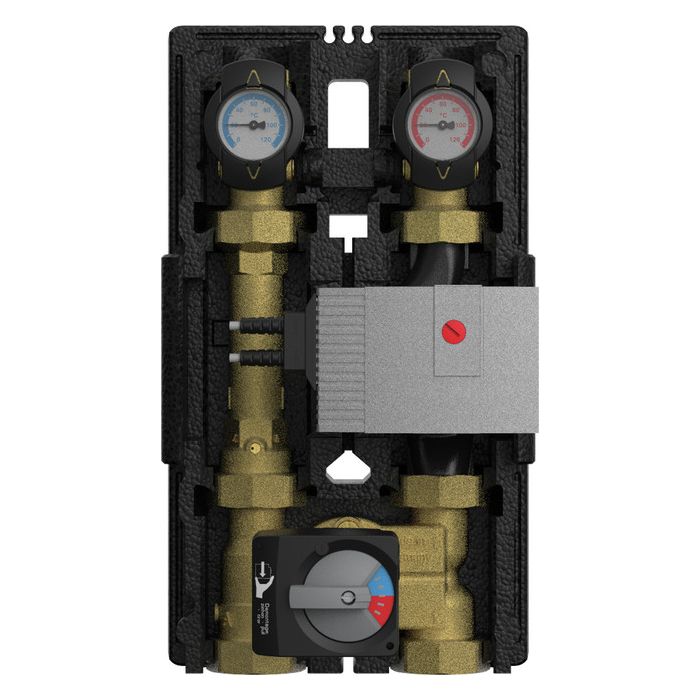

CoolBloC C34 DN 32 (1¼")

3-way mixing valve with bypass 0-50%
Field of application: for heating and cooling systems controlled by a mixing valve
Recommended application range: up to 48 kW; 20 K up to 2070 l/h

SKU
4239063M
Prices are only visible for registered users.
Operating data
Max. operating temperature: 95 °C
Dial thermometer: 0 - 120 °C
Output: 48 kW
Max. operating pressure: 6 bar
Temperature difference: 20 K
Kvs value: 10. Jan
Max. operating temperature: 95 °C
Min. operating temperature: 5 °C
Flow rate: 2070 l/h
Equipment
Number of check valves: 1
Check valves: 1 x 200 mm wc
Dial thermometer: 0 - 120 °C
Shut-off valves: Ball valves with handle
Opening pressure check valve: 200 mm wc
Number of check valves: 1
Dimensions
Height: 441 mm
Width: 250 mm
Nominal diameter: DN 32 (1¼")
Installation length: 400 mm
Connection generator: 1¼" int. thread
Connection consumer: 2" ext. thread, flat sealing
Centre distance: 125 mm
Materials
Valves and fittings: Brass
Gaskets: EPDM
Insulation: EPP
Condensation-resistant valves and fittings: high-quality components to avoid condensation
Special pump with additional insulating element for the use in special ambient conditions, such as dewing or condensate formation
Thermal separation of the actuator (only C34 DN 25/32) and the mixing valve to avoid condensate formation
Sealing lips protected by the utility model in the insulation to reduce condensate formation
