HeatBloC®
Heating
technology

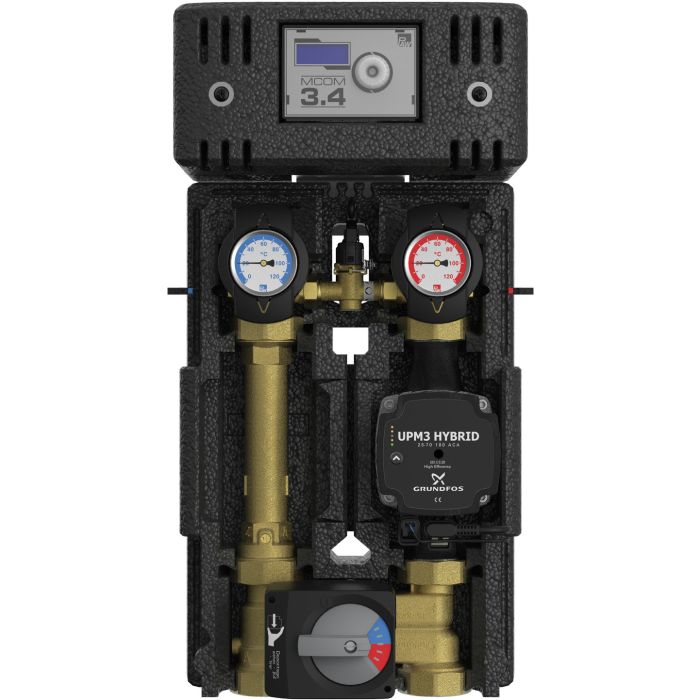

HeatBloC® MC45 - DN 25 (1")
3-temperatures mixing valve
with integrated controller
Application range: Heating installations with buffer tank and solar heating support, control of radiant floor and panel heating systems
Recommended application range: up to 32.5 kW; 20 K up to 1400 l/h
with integrated controller
Application range: Heating installations with buffer tank and solar heating support, control of radiant floor and panel heating systems
Recommended application range: up to 32.5 kW; 20 K up to 1400 l/h
Operating data
Max. operating temperature:
110 °C
Differential pressure sensors:
0-600 mbars
Dial thermometer:
0 - 120 °C
Output:
32 kW
Max. operating pressure:
6 bar
Temperature difference:
20 K
Kvs value:
04. Jul
Max. operating temperature:
110 °C
Flow rate:
1400 l/h
Equipment
Number of check valves:
1
Controller MCom 3.4:
24 Vdc, max. 200 mA Interface: Modbus RTU (integration in Smart Home central units and building control systems)
Check valves:
1 x 200 mm wc
Dial thermometer:
0 - 120 °C
Shut-off valves:
Ball valves with handle
Controller MCom 3.4:
24 Vdc, max. 200 mA Interface: Modbus RTU (integration in Smart Home central units and building control systems)
Differential pressure sensors:
0-600 mbars
Opening pressure check valve:
200 mm wc
Number of check valves:
1
Dimensions
Height:
500 mm
Width:
250 mm
Nominal diameter:
DN 25 (1")
Installation length:
340 mm
Connection generator:
1½" ext. thread, flat sealing
Connection consumer:
1" int. thread
Centre distance:
125 mm
Materials
Valves and fittings:
Brass
Gaskets:
EPDM
Insulation:
EPP
EnEV-compliant hydraulic balancing on the distribution manifold
No under- or oversupply of individual heating circuits
No loss of comfort
Easy commissioning of the system
Easy system monitoring via free app
Cost monitoring via app
Possibility to obtain governmental subsidies
Easy integration in already existing heating systems
Balanced system in each operating point
Autarkic control system:
The HeatBloC®s MCom adjust the revolution speed of the pump, the boiler control switches the pumps on and off and regulates the flow temperature
No under- or oversupply of individual heating circuits
No loss of comfort
Easy commissioning of the system
Easy system monitoring via free app
Cost monitoring via app
Possibility to obtain governmental subsidies
Easy integration in already existing heating systems
Balanced system in each operating point
Autarkic control system:
The HeatBloC®s MCom adjust the revolution speed of the pump, the boiler control switches the pumps on and off and regulates the flow temperature
