HeatBloC®

Heating

technology

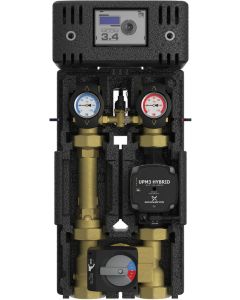

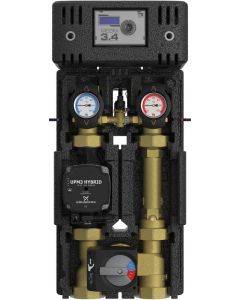

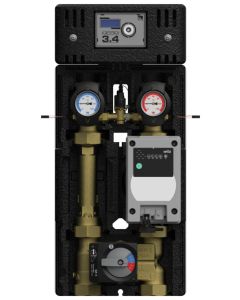

HeatBloC® MC42 - DN 32 (1¼")

3-way mixing valve
with integrated controller
Application range: for heating systems controlled by a mixing valve
Recommended application range: up to 51 kW; 20 K up to 2200 l/h

SKU
4539053M
Prices are only visible for registered users.
Operating data
Max. operating pressure: 6 bar
Kvs value: 09. Jun
Flow rate: 2200 l/h
Max. operating temperature: 110 °C
Differential pressure sensors: 0-600 mbars
Dial thermometer: 0 - 120 °C
Equipment
Shut-off valves: Ball valves with handle
Opening pressure check valve: 200 mm wc
Number of check valves: 1
Controller MCom 3.4: 24 Vdc, max. 200 mA Interface: Modbus RTU (integration in Smart Home central units and building control systems)
Dimensions
Height: 557 mm
Width: 250 mm
Nominal diameter: DN 32 (1¼")
Installation length: 400 mm
Connection generator: 2" ext. thread, flat sealing
Connection consumer: 1¼" int. thread
Centre distance: 125 mm
Materials
Valves and fittings: Brass
EnEV-compliant hydraulic balancing on the distribution manifold. No under- or oversupply of individual heating circuits. No loss of comfort. Easy commissioning of the system. Easy system monitoring via free app. Cost monitoring via app. Possibility to obtain governmental subsidies. Easy integration in already existing heating systems. Balanced system in each operating point
Autarkic control system: The HeatBloC®s MCom adjust the revolution speed of the pump, the boiler control switches the pumps on and off and regulates the flow temperature.
