HeatBloC®

Heating

technology

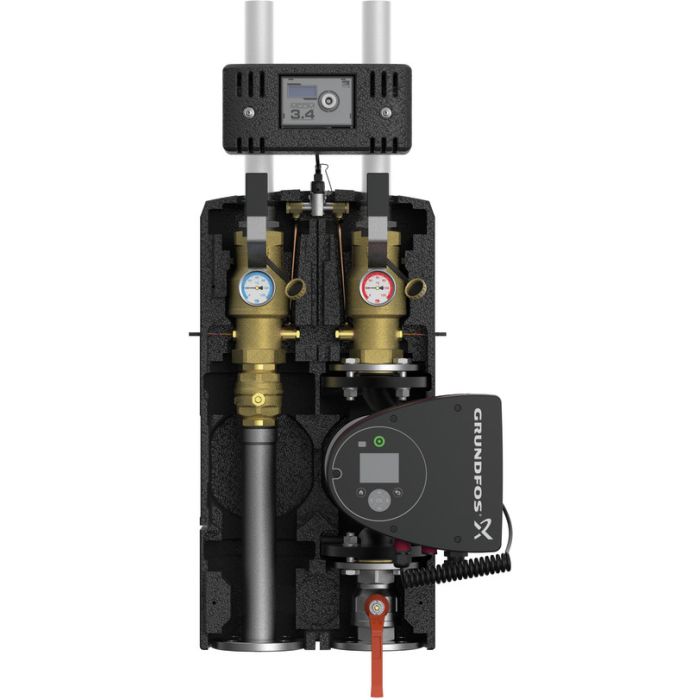

HeatBloC® MC41 - DN 40 (1½")

direct / unmixed
with integrated controller
Application range: for boiler charging, for modulating temperature heating
Recommended application range: up to 150 kW; 20 K up to 6500 l/h

SKU
4541011
Prices are only visible for registered users.
Operating data
Max. operating temperature: 110 °C
Differential pressure sensors: 0-600 mbars
Dial thermometer: 0 - 120 °C
Output: 150 kW
Max. operating pressure: 6 bar
Temperature difference: 20 K
Kvs value: 28. Mrz
Max. operating temperature: 110 °C
Flow rate: 6500 l/h
Equipment
Number of check valves: 1
Controller MCom 3.4: 24 Vdc, max. 200 mA Interface: Modbus RTU (integration in Smart Home central units and building control systems)
Check valves: 1 x 250 mm wc
Dial thermometer: 0 - 120 °C
Shut-off valves: Ball valves with handle
Controller MCom 3.4: 24 Vdc, max. 200 mA Interface: Modbus RTU (integration in Smart Home central units and building control systems)
Differential pressure sensors: 0-600 mbars
Opening pressure check valve: 250 mm wc
Number of check valves: 1
Dimensions
Height: 790 mm
Width: 320 mm
Nominal diameter: DN 40 (1½")
Installation length: 560 mm
Connection generator: Flange DN 40 / PN 6
Connection consumer: 1½" int. thread
Centre distance: 160 mm
Materials
Valves and fittings: Brass
Gaskets: EPDM
Insulation: EPP
Ermöglicht den EnEV-konformen hydraulischen Abgleich auf dem Verteiler
Keine Unter- oder Überversorgung einzelner Heizkreise
Kein Komfortverlust
Einfache Inbetriebnahme des Systems
Einfaches Anlagenmonitoring mittels kostenloser App
Kostenüberwachung via App
Sicherung staatlicher Zuschüsse

Einfachste Integration in vorhandene Heizungssysteme
Abgeglichenes System in jedem Betriebspunkt
Autarkes Regelungssystem:
HeatBloC®s MCom regeln die Pumpendrehzahl, die Kesselregelung schaltet die Pumpen ein und aus und regelt die Vorlauftemperatur
