HeatBloC®
Heating
technology

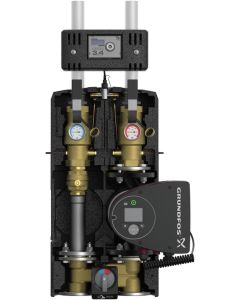

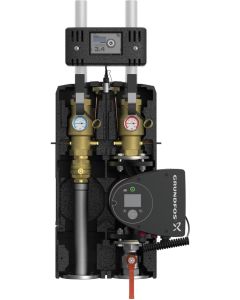

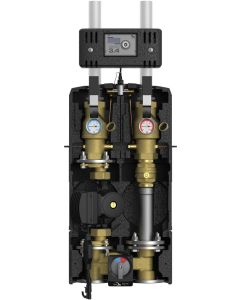

HeatBloC® MC46 - DN 40 (1½")
Boiler charging set with 3-way mixing valve
with integrated controller
with connection set for controller MCom
Application range: return flow temperature maintenance for solid fuel boilers, wood firing and stove heating systems
Recommended application range: up to 125 kW; 20 K up to 5400 l/h
with integrated controller
with connection set for controller MCom
Application range: return flow temperature maintenance for solid fuel boilers, wood firing and stove heating systems
Recommended application range: up to 125 kW; 20 K up to 5400 l/h
Operating data
Max. operating temperature:
110 °C
Differential pressure sensors:
0-600 mbars
Dial thermometer:
0 - 120 °C
Output:
125 kW
Max. operating pressure:
6 bar
Temperature difference:
20 K
Kvs value:
17. Jul
Max. operating temperature:
110 °C
Flow rate:
5400 l/h
Equipment
Number of check valves:
1
Controller MCom 3.4:
24 Vdc, max. 200 mA
Schnittstelle: Modbus-RTU (Einbindung in SmartHome und GLT)
Check valves:
1 x 250 mm wc
Dial thermometer:
0 - 120 °C
Shut-off valves:
Ball valves with handle
Controller MCom 3.4:
24 Vdc, max. 200 mA
Schnittstelle: Modbus-RTU (Einbindung in SmartHome und GLT)
Differential pressure sensors:
0-600 mbars
Opening pressure check valve:
250 mm wc
Number of check valves:
1
Dimensions
Height:
790 mm
Width:
320 mm
Nominal diameter:
DN 40 (1½")
Installation length:
560 mm
Connection generator:
Flange DN 40 / PN 6
Connection consumer:
1½" int. thread
Centre distance:
160 mm
Materials
Valves and fittings:
Brass
Gaskets:
EPDM
Insulation:
EPP
EnEV-compliant hydraulic balancing on the distribution manifold. No under- or oversupply of individual heating circuits. No loss of comfort. Easy commissioning of the system. Easy system monitoring via free app. Cost monitoring via app. Possibility to obtain governmental subsidies. Easy integration in already existing heating systems. Balanced system in each operating point.
Autarkic control system: The HeatBloC®s MCom adjust the revolution speed of the pump, the boiler control switches the pumps on and off and regulates the flow temperature.
Autarkic control system: The HeatBloC®s MCom adjust the revolution speed of the pump, the boiler control switches the pumps on and off and regulates the flow temperature.
