HeatBloC®

Heating

technology

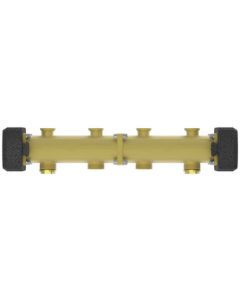

Distribution manifold DN 32 (1¼")

Modular design,
for outputs up to 150 kW (for each boiler connection) at a temperature difference of 20 K

SKU
371x3
Prices are only visible for registered users.
Operating data
Max. operating temperature: 110 °C
Output: 150 kW
Max. operating pressure: 6 bars
Temperature difference: 20 K
Max. operating temperature: 110 °C
Kvs value modular distribution manifold: 2-fold: 34.0, 3-fold: 37.0, 4-fold: 38.0, 5-fold: 38.0, 6-fold: 38.0
Dimensions
Height: 156 mm
Nominal diameter: DN 32 (1¼")
Connection generator: 2" ext. thread, flat sealing (bottom), 2 x for boiler connection, others plugged
Connection consumer: 1¼" PAW flange for nut 2" (top)
Centre distance: 125 mm
Height insulation: 156 mm
Materials
Valves and fittings: Brass
Gaskets: EPDM / AFM34
Insulation: EPP
completely made of brass
completely premounted
entirely insulated with EPP half-shells
extremely low resistance, free passage d = 50 mm
up to 6 groups, premounted, extendable
several boiler connections possible, for higher outputs
