HeatBloC®

Heating

technology

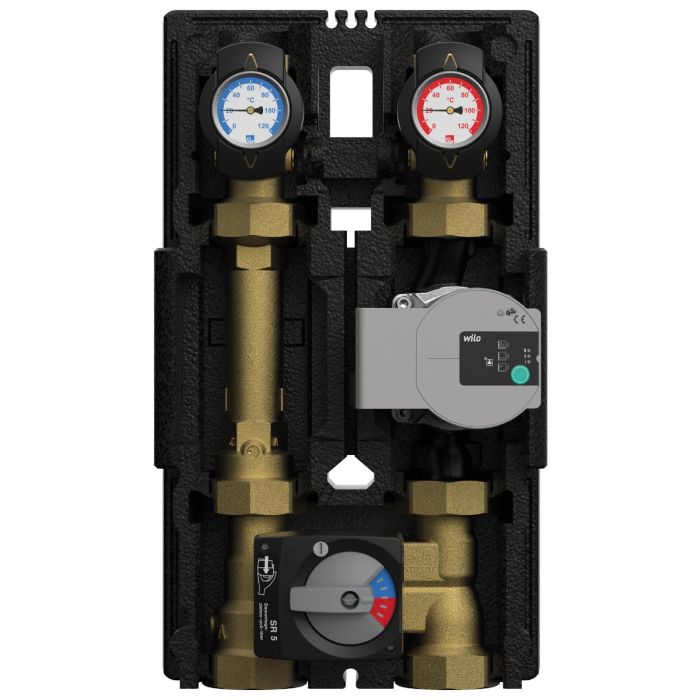

HeatBloC® K32 DN 32 (1¼")

3-way mixing valve
Field of application: for heating systems controlled by a mixing valve
Recommended application range: up to 51 kW; 20 K up to 2200 l/h

SKU
39053xx
Prices are only visible for registered users.
Operating data
Max. operating pressure: 6 bar
Kvs value: 09. Jun
Flow rate: 2200 l/h
Max. operating temperature: 110 °C
Dial thermometer: 0 - 120 °C
Equipment
Shut-off valves: Ball valves with handle
Opening pressure check valve: 200 mm wc
Number of check valves: 1
Dimensions
Height: 441 mm
Width: 250 mm
Nominal diameter: DN 32 (1¼")
Installation length: 400 mm
Connection generator: 2" ext. thread, flat sealing
Connection consumer: 1¼" int. thread
Centre distance: 125 mm
Materials
Valves and fittings: Brass
Flat-sealing connections 2" ext. thread
incl. 2" union nut for the installation on a PAW modular distribution manifold.With PAW mounting equipment the heating circuit can be installed on wall brackets.

Large ball valve handles
easy handling, visible closing position

3-way mixing valve
completely made of brass, linear characteristic (prevents temperature variation).The pump can be isolated so that it can be replaced without draining.
For mounting actuators of other manufacturers, you need the adapter set item no. 705580.

PAW actuator SR5
with 1.5 m cable and mounting set for snap-in assembly on the mixing valve, suited for flow on the right or left side, change-over switch for manual / automatic operation, supply 230 V / 50 Hz, torque 5 Nm

EnEV-compliant functional insulation
made of durable elastic EPP, complete insulation of valves and fittings, ventilation opening to cool the pump

Free access to the pump head
by simply removing the front insulation shell

Check valve in the return pipe
can be opened, 200 mm wc, spring-loaded, thus suited for horizontal and overhead installation

Flow on the right = standard
Flow and return line can be changed on site, also for heating circuits with mixing valve

All water-carrying parts are made of brass

Full metal thermometers
can be pulled off, with immersion sleeve integrated in the ball valve

PAW heating pumps with high-efficiency (ECM) technology
fitted with 2 m cable, completely premounted, integrated in the insulation, pressure tested, with serial number, perfectly designed system, pump characteristics, EuP/ErP READY

Pump can be isolated,
so that it can be replaced without draining
