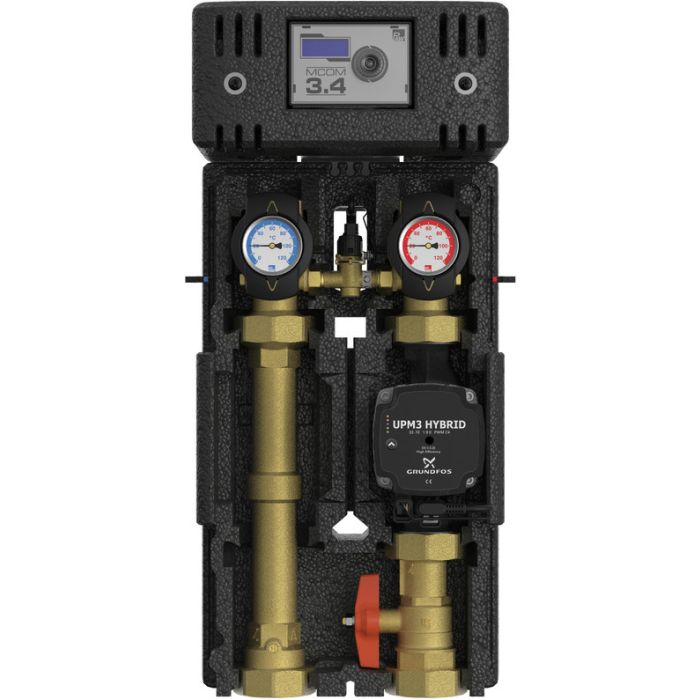

HeatBloC® MC41 - DN 32 (1¼")
direct / unmixed
with integrated controller
Application range: for boiler charging, for modulating temperature heating
Recommended application range: up to 65 kW; 20 K up to 2800 l/h
with integrated controller
Application range: for boiler charging, for modulating temperature heating
Recommended application range: up to 65 kW; 20 K up to 2800 l/h
| Number of check valves | 1 |
|---|
Operating data
Max. operating temperature:
110 °C
Differential pressure sensors:
0-600 mbar
Dial thermometer:
0 - 120 °C
Output:
65 kW
Max. operating pressure:
6 bar
Temperature difference:
20 K
Kvs value:
15.1
Flow rate:
2800 l/h
Equipment
Controller MCom 3.4:
24 Vdc, max. 200 mA
Interface: Modbus RTU (integration into building control and SmartHome systems )
Check valves:
1 x 200 mm wc
Dial thermometer:
0 - 120 °C
Shut-off valves:
Ball valves with handle
Temperature sensors:
1x Pt1000 in the flow and return
Differential pressure sensors:
0-600 mbar
Opening pressure check valve:
200 mm wc
Dimensions
Height:
557 mm
Width:
250 mm
Nominal diameter:
DN 32 (1¼")
Installation length:
400 mm
Connection generator:
2" ext. thread, flat sealing
Connection consumer:
1¼" int. thread
Centre distance:
125 mm
Materials
Valves and fittings:
Brass
Gaskets:
EPDM
Insulation:
EPP
EnEV-compliant hydraulic balancing on the distribution manifold ...
