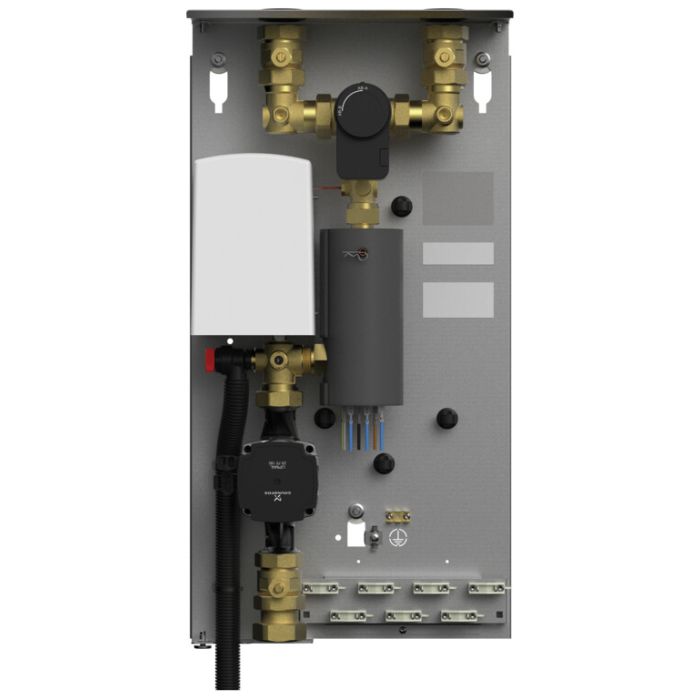

BoostBloC®
Heat
pump
post-heating
BoostBloC® DN 25+
Manufacturer:
Operating data
Max. operating pressure:
3 bar
Kvs value:
84
Fluid:
Heating water
Minimum volume flow rate (during heating):
500 l/h
Nominal capacity:
0.8 l
Residual head (at 2000 l/h):
60,8 kPa
Equipment
Sensors:
1x Pt1000
Safety valve:
3 bar
Pump designation:
Grundfos UPM4L 25-75
Dimensions
Height:
711 mm
Width:
406 mm
Nominal diameter:
DN 25 (1")
Depth:
200 mm
Installation length:
661 mm
Flow / return consumer:
1½" int. thread
Flow / return heat pump:
1½" int. thread
Materials
Valves and fittings:
Brass,Copper
Gaskets:
EPDM
Electrical data (heating/actuators)
Protection class:
I
Protection class:
IP 20
Torque actuator:
5 Nm, 2-Punkt-Ansteuerung
Heating cartridge - control:
External control required,3x relay (230 VAC, 50 Hz, < 5 VA)
Heating cartridge - electrical connection:
400 V 3N 50 Hz
Heating cartridge - cable cross-section:
2,5 - 6 mm²
Heating cartridge - nominal output level 1:
P1 = 2600 W
Heating cartridge - nominal output level 2:
P2 = 3000 W
Heating cartridge - nominal output level 3:
P3 = 3200 W
Pump - feature:
PWM interface with feedback signal for volume flow rate determination
Pump - electrical connection:
230 VAC/50 Hz, 0,58 A
STB - Switch-off temperature:
85 °C - 8K
STB - Voltage:
400 V
Actuator - data:
Protection category: IP42, protection class II,13 s/90°, 60 % EDmax
Actuator - electrical connection:
230 V, 50 Hz, <5 VA
Actuator - protection category:
IP 42
Actuator - protection class:
II
.
