Accessories SolarBloC® DN 20

15 Produkte

  1. Immersion sleeves ½" ext. thread
    Immersion sleeves ½" ext. thread
    for the installation of the temperature sensors (d = 6 mm) in the storage tank, in the collector and the hydraulic separator.

    Attention: suitable for ball valves until 2016!

    566001: self-sealing with, o-ring, polished brass, for sensor, T = 30 mm
    566002: standard, chromed brass, for sensor, T = 60 mm
    5660021: standard, chromed brass, with valve extension (25 mm), for sensor, T = 60 mm
    566003: standard, chromed copper, for sensor, T = 100 mm
    566004: standard, chromed copper, for sensor, T = 150 mm

    Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  2. Cutting-ring compression fitting DN 20
    Cutting-ring compression fitting DN 20
    ¾" external thread, self-sealing with o-ring, with support sleeve, suitable for soft copper pipes. For temperatures up to 150 °C. Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  3. Solar tank connection set for diaphragm expansion tank - DN 20 (¾")
    Solar tank connection set for diaphragm expansion tank - DN 20 (¾")
    for connection to the safety set ¾", for tank diameter up to 440 mm, max. 35 kg, with stainless steel corrugated hose ¾" internal thread - internal thread x 500 mm, wall bracket with mounting equipment, solar tank connector ¾"

    Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  4. Connection piece for immersion sleeves DN 20 (¾")
    Connection piece for immersion sleeves DN 20 (¾")
    Connection piece for immersion sleeve with ½" external thread, for a length up to 45 mm
    1" union nut with gasket, ¾" internal thread, with sleeve

    Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  5. Flush and drain unit DN 20
    Flush and drain unit DN 20
    Counter T-piece, self-sealing with fill and drain valve for extending the solar station with a flush and drain connection, installation at the lowest point (drain unit). Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

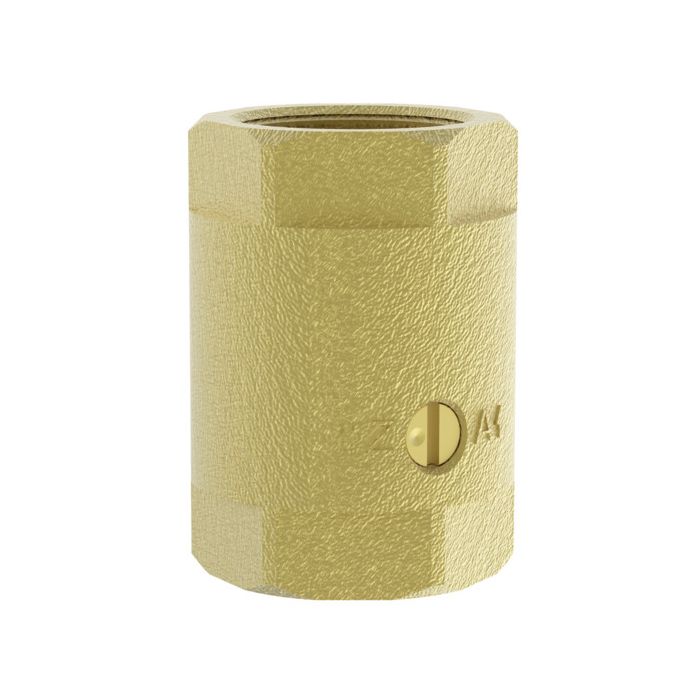

  6. Solar check valve RSS DN 20
    Solar check valve RSS DN 20
    with brass valve plate, all installation positions possible, opening pressure 200 mm wc, ¾" internal thread, length = 50 mm

    1211: can be opened, up to 150 °C
    12111: without possibility for manual opening, up to 220 °C



    Learn More

    Valves/Fittings

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  7. Hand filling pump with fill and drain valve
    Hand filling pump with fill and drain valve
    ½" external thread, 15 mm hose connection, attainable pressure up to approx. 4 bars, length 225 mm



    Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  8. Hand filling pump without fill and drain valve
    Hand filling pump without fill and drain valve
    ½" external thread, 15 mm hose connection, attainable pressure up to approx. 4 bars, length 225 mm



    Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  9. Hose connector
    Hose connector
    Hose connector for hand filling and injection pump ½" x 15 mm



    Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

  10. Stainless-steel corrugated hose Solarflex
    Stainless-steel corrugated hose Solarflex
    Ideal for the roof part leading to the collector. Learn More

    Solex|SolarBloC®

    Solar

    thermal

    systems

    Prices are only visible for registered users.

    Our offer is exclusively aimed at corporate clients.

    Our offer is exclusively aimed at corporate clients.

No further products
