SolexMini HZ up to 36 m²

Field of application: for charging buffer storage tanks
Application range: up to 36 m² collector surface
with heat quantity measurement according to the BAFA promotion directive for solar thermal systems
The CE-conformity of the installation has been certified according to DIN EN 60335.

Prices are only visible for registered users.

Our offer is exclusively aimed at corporate clients.

Operating data
Max. operating pressure primary: 6 bar
Max. operating pressure secondary: 3 bar
Max. operating temperature primary: 120 °C
Max. operating temperature secondary: 95 °C
Controller: SC5.14
Check valves: primary: 2 x 200 mm wc / secondary: 1 x 200 mm wc
Pressure gauge: 0-6 bar, resistant to high temperatures
Flow meter: 0.5-15 l/min
Shut-off valves: Ball valves
Sensors: 2 x Pt1000 (integrated) / 3 x Pt1000 (enclosed)
Heat exchanger: E8ASH, 24 plates
Safety valve: primary: 6 bar / secondary: 3 bar
FlowRotor: 0.5-15 l/min
Airstop: yes
Number of check valves: 2
Height: 664 mm
Width: 427 mm
Nominal diameter: DN 15 (½")
Depth: 313 mm
Installation length: 600 mm
Connection primary: ¾" int. thread
Connection secondary: ¾" int. thread
Valves and fittings: Brass
Gaskets: EPDM / AFM34
Insulation: EPP
Piping: Stainless steel
Check valves: Brass
Heat exchanger: Solder: copper,Plates + connecting pieces: stainless steel
Design data
Operating mode LowFlow: 15 l/(m²xh)
Operating mode HighFlow: 40 l/(m²xh)
Collector surface LowFlow: 25 m²
Collector surface HighFlow: 30 m²
Output LowFlow: 18 kW
Temperature difference LowFlow: 20 K
Temperature difference HighFlow: 12 K
Boundary conditions: Irradiation = 800 W/m²; efficiency ᵑ0.05 = 65%

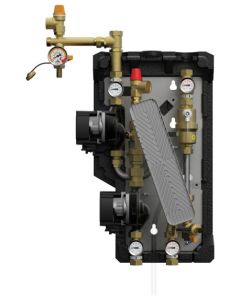

The compact and completely premounted solar transfer station is completely insulated and equipped with a generously dimensioned stainless steel plate heat exchanger and with a preset and prewired controller.For a simple and quick installation as well as a safe commissioning.

All connections ¾" internal thread
Premounted on steel wall bracket
can be easily mounted to the wall

All fluid-carrying parts made of brass or stainless steel, fully assembled - self-sealing or flat gaskets

Full port ball valves

Check valve in the solar and secondary circuit, can be opened, 200 mm wc, especially for solar systems, prevent unwanted circulation

Airstop in the flow line
for permanent deaeration of the solar fluid

With high-efficiency pumps by Grundfos, premounted and prewired, adapted to the performance of the transfer station, pumps can be isolated completely, no draining during servicing

Flush and fill unit integrated
two fill and drain valves permit filling and flushing the primary circuit, secondary circuit with pressure relief valve at the highest point of the heat exchanger

FlowRotor, flow meter for speed control of the secondary pump, depending on the performance and heat quantity balancing (secondary)

Solar safety group
Solar pressure relief valve 6 bar, pressure gauge resistant to high temperatures 0-6 bar with valve, flat sealing connection for a diaphragm expansion tank, secondary side with pressure relief valve, 6 bar

Compact design insulation with optimised function
made of durable elastic EPP, 100 % insulated valves and fittings - excellent ventilation and cooling of the pumps, minimal heat losses

High-efficiency plate heat exchanger
generously dimensioned, for transmitting high performances with low temperature differences, completely integrated into the insulation
