Actuators
-
PAW actuator SR2easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for snap-in assembly on the PAW mixing valve,
for weather-compensated control,
due to the removable scale it is suited for the flow on the right or left side
change-over switch for manual / automatic operation
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
PAW actuator SR5Change-over switch for manual / automatic operation,
easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for snap-in assembly on the PAW mixing valve,
for weather-compensated control,
due to the removable scale it is suited for the flow on the right or left side
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 2.5 W
Torque: 5 Nm
Setting time for 90°: 140 s
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
PAW actuator SR10due to the removable scale it is suited for flow on the right or left side,
easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 1.5 m cable and mounting set for halting assembly on the PAW mixing valve,
for weather-compensated control, change-over switch for manual / automatic operation
Technical data
Electrical connection: 230 V / 50 Hz
Input power: 3.5 W
Torque: 10 Nm
Setting time for 90°: 140 s
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-

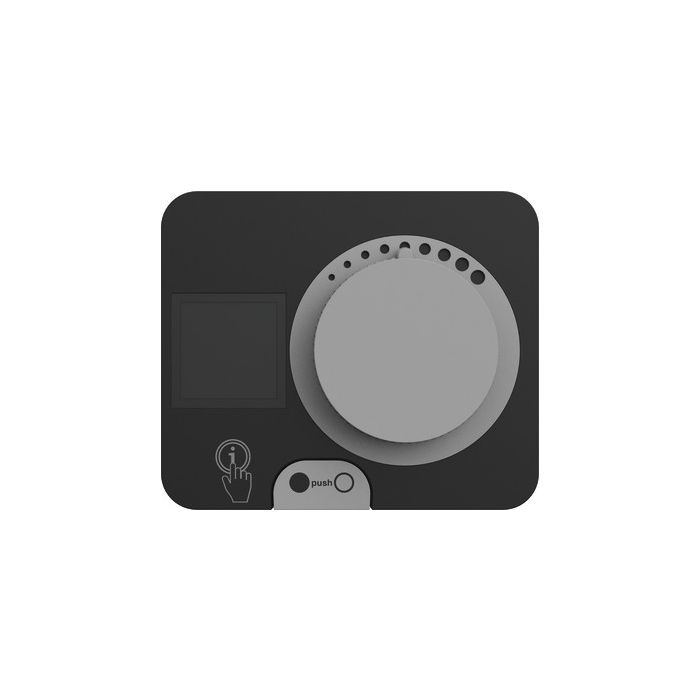

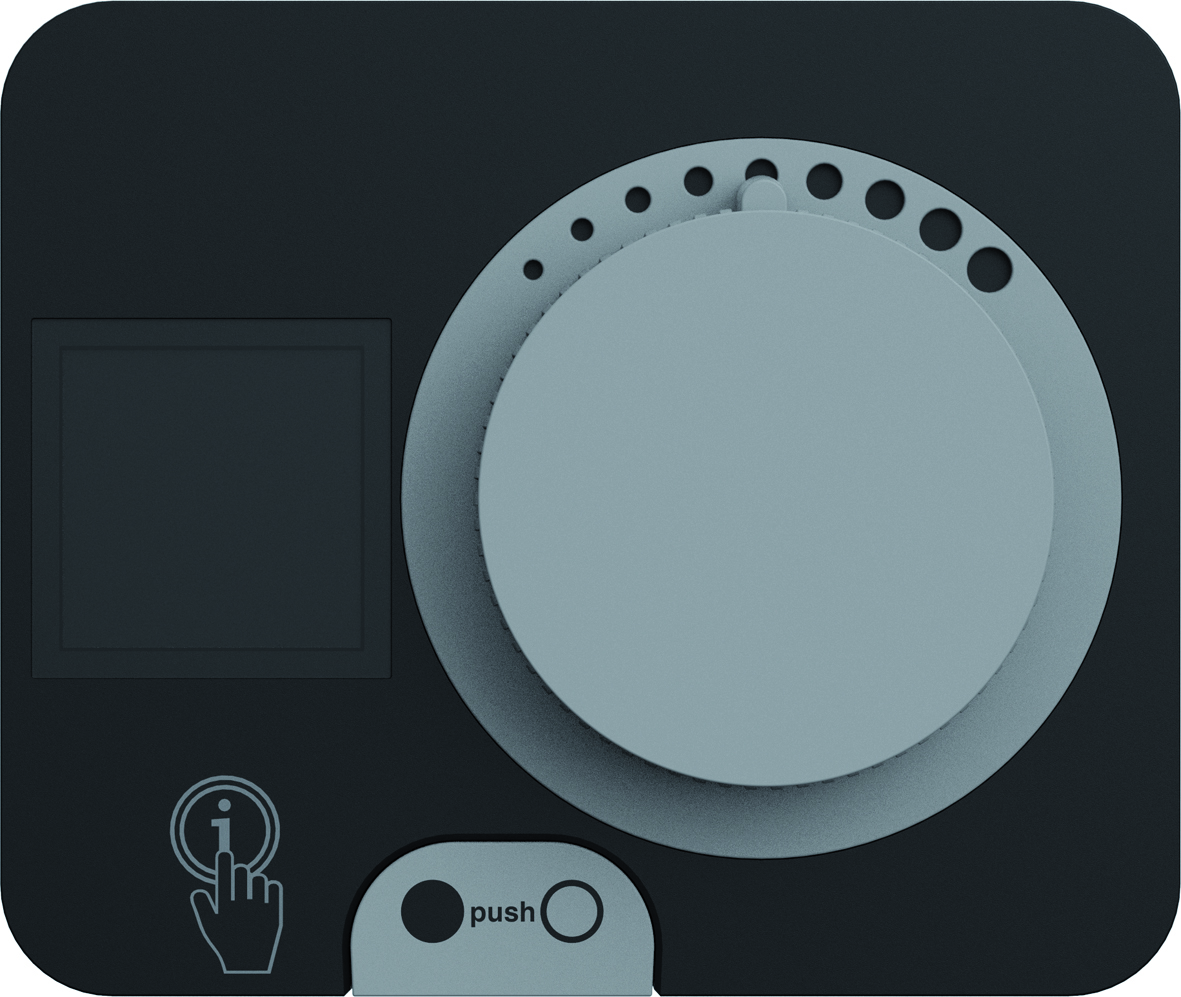

PAW Constant temperature controller PKR6Item number : 703601
Easy assembly and disassembly thanks to the smart PAW snap-in mechanism,
with 2 m cable and safety plug,
incl. mounting set for snap-in assembly on the PAW mixing valve and Pt1000 screw-in sensor G¼" for the flow ball valve,
change-over switch for manual / automatic operation
controller settings for direction of rotation, operation mode and nominal temperature can be adjusted at the display
Technical data
Power supply: 230 V - 50 Hz
Power consumption: 3 W
Torque: min. 6 Nm
Setting time 90°: 120 s
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
PAW Weather compensated controller PWR6Same type as the PAW constant temperature controller PKR6 (art.no. 703601), but for the use of a weather-compensated heating circuit.
The package includes the outdoor sensor, the flow sensor as well as the source sensor. This ensures that the mixing valve or the heating circuit can be operated in an autarkic manner and
without boiler control.
In addition, it is possible to set the room temperature centrally in the flat via a room based remote control (art.no. 1359501).
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
Supplementary set for mixing valve shaftAdapter piece to extend the shaft of PAW mixing valves, for the assembly of actuators of other manufacturers
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
Accessory kit for Viessmann actuators for assembly to PAW mixing valvesAccessory kit for PAW actuators with 3-point suspension (Dekamatik and Vitotronic) to PAW mixing valves DN 20 - DN 50 with short shaft.
Please consider the width of the actuator when mounting it to the HeatBloC®s DN 20.
Not to be mounted to transfer systems TE3.
Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
Supplementary switchItem number: 705101
The limit switch is a micro switch.
For the assembly in the actuators SR5 and SR10-24/3P. Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
2-way zone valveCan be used in solar and heating installations as a zone valve, which means that single parts of the system can be connected or disconnected.
The actuator is equipped with a relay which is actuated by a 2-point signal, if need be it can also be manually operated.
The 2-way zone valve can be operated in both directions. Learn MoreValves/Fittings
Our offer is exclusively aimed at corporate clients.
Our offer is exclusively aimed at corporate clients.
-
3-way zone valveCan be used in solar and heating installations, to switch between different zones or to connect and disconnect different parts of the system.
The actuator is equipped with a relay which is actuated by a 2-point signal, if need be it can also be manually operated.
The 3-way zone valve can be operated in both directions. Learn MoreValves/Fittings
