Valves/Fittings

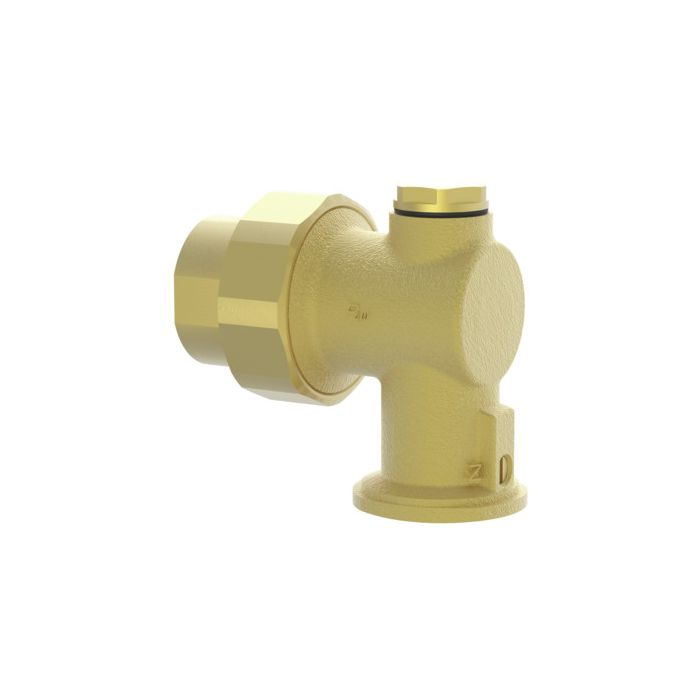

Elbow check valve
- with check valve, can be opened manually, automatic air passage
- with connection for automatic air vent (½" sleeve)
Opening pressure 200 mm wc
- with connection for automatic air vent (½" sleeve)
Opening pressure 200 mm wc
Operating data
Max. operating temperature:
120 °C
Max. operating temperature:
120 °C
Nominal pressure:
10 bars
Opening pressure:
200 mm wc
Dimensions
Width:
68 mm
Nominal diameter:
DN 25 (1")
Connection top:
1"
Connection bottom:
½"
Connection:
F 1" x ½" int. thread
Connection internal thread:
½"
PAW flange (without nut):
1"
Length:
50 mm
Materials
Valves and fittings:
Brass
- with check valve, can be opened manually, automatic air passage
- with connection for automatic air vent (½" sleeve)
Opening pressure 200 mm wc
- with connection for automatic air vent (½" sleeve)
Opening pressure 200 mm wc
