SBE - int. thread with automatic air passage

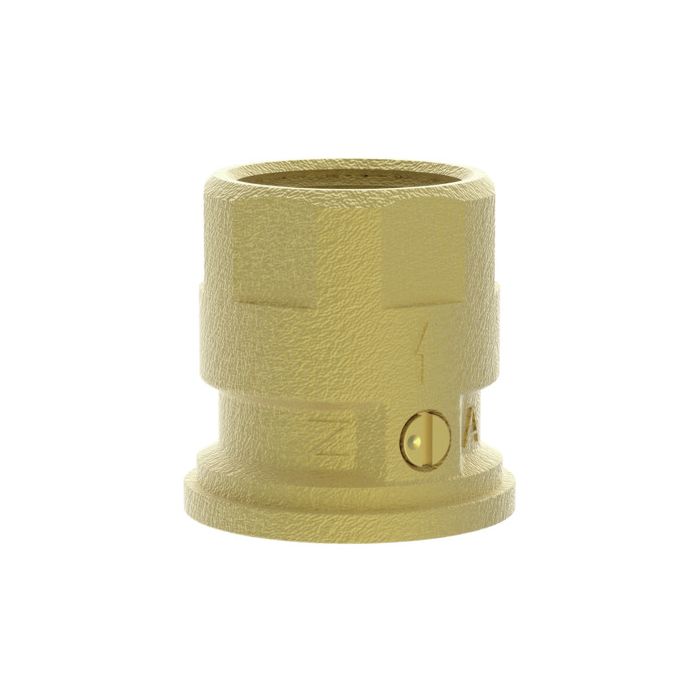

Check valve, can be opened, with automatic air passage, with internal thread and PAW flange
for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
Manufacturer:
Operating data
Max. operating temperature:
120 °C
Nominal pressure:
10 bar
Opening pressure:
200 mmWS
Equipment
Characteristics:
one side PAW flange, other side internal thread,can be opened manually,to be directly screwed to the pump,suitable for horizontal and vertical installation,with automatic air passage
Dimensions
Nominal diameter:
DN 25 (1")
Connection internal thread:
1"
PAW flange (without nut):
1"
Length:
Item no. 1107: 57 mm; Item no. 1117: 45 mm
Materials
Valves and fittings:
Brass
Check valve, can be opened, with automatic air passage,
with internal thread and PAW flange for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
with internal thread and PAW flange for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
