Search results for: 'valv'
Did you mean valve?
-

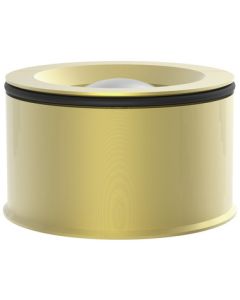

Non-return valve for the mixing valve returnTo be inserted into the PAW mixing valve.
Prevents unwanted circulation for example when various mixing valves are connected to one distribution manifold.
The shutoff valve can be simply inserted into the mixing valve.
Learn MoreOur offer is exclusively aimed at corporate clients.
-
Thermometer valve with flow check valve (TKS)1 x PAW flange (without nut)
1 x internal thread
Diameter thermometer = 50 mm
Dial thermometer with red scale in the handle, handle can be pulled off with thermometer, check valve 200 mm wc, can be opened
For DN 25-32 additionally:
1 x sleeve (on the side) ½", for overflow valve or immersion sleeve/sensor connection
1 x self-sealing blind plug ½"
Learn MoreOur offer is exclusively aimed at corporate clients.
-
Withdrawal valveFlame-treated valves for sterile withdrawal of water.
For the subsequent installation inside the domestic hot water module, on each piston valve of the domestic hot water circuit. Learn MoreOur offer is exclusively aimed at corporate clients.
-
Non-return valve DN 32To be inserted into the PAW mixing valve.
Prevents unwanted circulation for example when various mixing valves are connected to one distribution manifold.
The shutoff valve can be simply inserted into the mixing valve.
Learn MoreOur offer is exclusively aimed at corporate clients.
-
Automatic vent valveself-sealing, with automatic isolation
Connection:
5234: ⅜" ext. thread
5235: ½" ext. thread Learn MoreOur offer is exclusively aimed at corporate clients.
-
2-way zone valveCan be used in solar and heating installations as a zone valve, which means that single parts of the system can be connected or disconnected.
The actuator is equipped with a relay which is actuated by a 2-point signal, if need be it can also be manually operated.
The 2-way zone valve can be operated in both directions. Learn MoreOur offer is exclusively aimed at corporate clients.
-
2-way zone valve DN 20for connecting and disconnecting single storage tanks,
DN 20, ¾" int. thread,
setting time for 90°: 30 sec. Learn MoreOur offer is exclusively aimed at corporate clients.
-
2-way zone valve DN 25/32for connecting and disconnecting single storage tanks,
DN 25, 1" int. thread, setting time for 90°: 30 sec.
DN 32, 1¼" internal thread, setting time 90°: 30 s Learn MoreOur offer is exclusively aimed at corporate clients.
-
Pump ball valve (PKAS)1 x PAW flange (without nut)
1 x internal thread
Material: brass
With automatic air passage and check valve (can be opened),
with red butterfly handle Learn MoreOur offer is exclusively aimed at corporate clients.
