SolexMega TW up to 200 m²Field of application: for charging buffer storage tanks
Application range: up to 200 m² collector surface with heat quantity measurement according to the BAFA promotion directive for solar thermal systems
The CE-conformity of the installation has been certified according to DIN EN 60335. Learn MoreOur offer is exclusively aimed at corporate clients.
-
SolexMega HZ up to 200 m²Field of application: for charging buffer storage tanks
Application range: up to 200 m² collector surface with heat quantity measurement according to the BAFA promotion directive for solar thermal systems
The CE-conformity of the installation has been certified according to DIN EN 60335. Learn MoreOur offer is exclusively aimed at corporate clients.
-
Solar check valve RSS DN 20with brass valve plate,
all installation positions possible,
opening pressure 200 mm wc,
¾" internal thread,
length = 50 mm
1211: can be opened, up to 150 °C
12111: without possibility for manual opening, up to 220 °C Learn MoreOur offer is exclusively aimed at corporate clients.
-

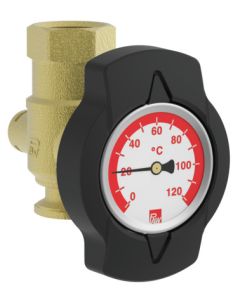

Thermometer valve with flow check valve (TKS)1 x PAW flange (without nut)
1 x internal thread
Diameter thermometer = 50 mm
Dial thermometer with red scale in the handle, handle can be pulled off with thermometer, check valve 200 mm wc, can be opened
For DN 25-32 additionally:
1 x sleeve (on the side) ½", for overflow valve or immersion sleeve/sensor connection
1 x self-sealing blind plug ½"
Learn MoreOur offer is exclusively aimed at corporate clients.
-
Overflow setOverflow valve with scale, bypass pipe, elbow gland, completely self-sealing.
Centre distance A = length, see table
For larger distances, a copper pipe 22 in the necessary length must be installed on site.
2850 and 2851: with screw connection 2 x ½" external thread
2853: with screw connection 2 x ¾", flat-sealing, suitable for foreign products Learn MoreOur offer is exclusively aimed at corporate clients.
-
SolarBloC® midi Basic, 3-lineApplication range:
Low-Flow (= 0.25 l/minute per m² collector surface), up to 60 m² collector surface
High-Flow (= 0.5 l/minute per m² collector surface), up to 40 m² collector surface
Please note: In order to guarantee a trouble-free function it is essential to carry out a hydraulic dimensioning/check. Learn MoreOur offer is exclusively aimed at corporate clients.
-
2-way zone valve DN 20for connecting and disconnecting single storage tanks,
DN 20, ¾" int. thread,
setting time for 90°: 30 sec. Learn MoreOur offer is exclusively aimed at corporate clients.
-
SolarBloC® megaApplication range:
Low-Flow (= 0.25 l/minute per m² collector surface), up to 175 m² collector surface
High-Flow (= 0.5 l/minute per m² collector surface), up to 115 m² collector surface
Please note: In order to guarantee a trouble-free function it is essential to carry out a hydraulic dimensioning/check. Learn MoreOur offer is exclusively aimed at corporate clients.
-
SolarBloC® midi Basic return stationApplication range:
Low-Flow (= 0.25 l/minute per m² collector surface), up to 60 m² collector surface
High-Flow (= 0.5 l/minute per m² collector surface), up to 40 m² collector surface
Please note: In order to guarantee a trouble-free function it is essential to carry out a hydraulic dimensioning/check. Learn MoreOur offer is exclusively aimed at corporate clients.
