HomeBloC®
Flat
stations

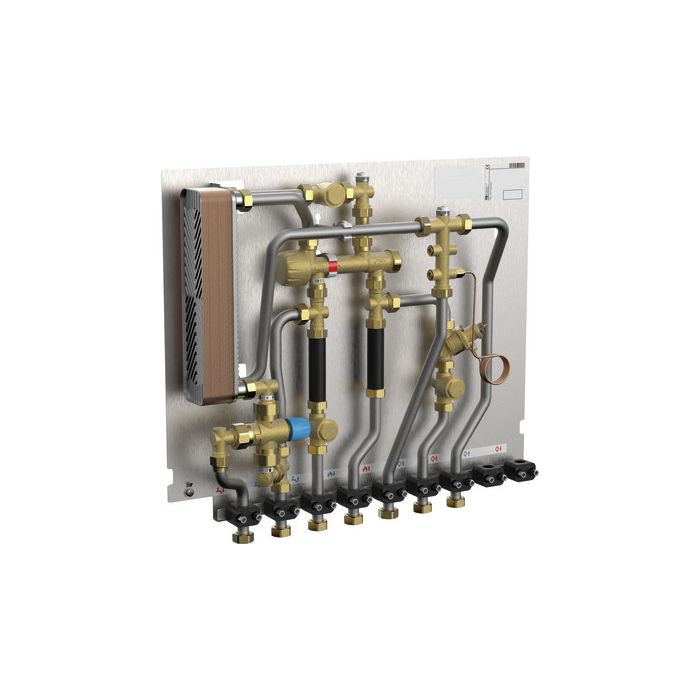

HomeBloC® Basic WR
for properties with one or various radiator circuits
Wall-mounted or flush-mounted cupboard must be ordered separately.
Wall-mounted or flush-mounted cupboard must be ordered separately.
| paw_waermetauscher_werkstoff | Copper solder,Stainless steel plates |
|---|
Operating data
Max. operating pressure heating system:
2.5 bar
Max. operating pressure domestic hot water:
10 bar
Max. operating temperature domestic hot water:
65 °C
Max. operating temperature heating system:
85 °C
Output capacity (10 ->45°C):
12 l/min (equates to 30 kW),16 l/min (equates to 40 kW),20 l/min (equates to 49 kW)
Heating capacity:
8.5 kW (when ΔT = 15 K)
Dimensions
Base plate station:
W = 660 mm, H = 555 mm, D = 100 mm
Flush-mounted cupboard:
W = 750 mm, H = 685, D = 10 mm
Cover frame (flush-mounted cupboard):
W = 750 mm, H = 555 mm, D = 110 mm
Wall-mounted cupboard:
W = 750 mm, H = 555 mm, D = 150 mm
Total dimensions:
W = 750 mm, H = 1,436 mm
Adjustment range of the base:
0 - 80 mm
Domestic hot water supply:
3 x ¾" int. thread (flat-sealing and self-sealing)
Heat supply:
2 x ¾" int. thread (flat-sealing and self-sealing)
Heating circuit outlets:
2 x ¾" int. thread (flat-sealing and self-sealing)
Materials
Valves and fittings:
Brass, approved for potable water
Gaskets:
Fibre composite / EPDM / Teflon
Base plate / Flush-mounted cupboard:
zinc-galvanised steel sheet
Cover frame, door, base cover:
Steel sheets, powder-coated, white (RAL 9016)
Pipes:
Stainless steel (1.4401), approved for potable water
This HomeBloC® Basic in the WR version is designed to be connected with an unmixed circuit.
The temperature of the flow line is heated by the supply (mixed heating circuit in the basement) to the desired level. Then, it is directly provided to the circuit of the HomeBloC® Basic.
This temperature can be directly used for space heating without being reduced by the flat station. A differential pressure valve avoids whistling noises and hydraulic problems.
Wall-mounted or flush-mounted cupboard must be ordered separately. See accessories.
The temperature of the flow line is heated by the supply (mixed heating circuit in the basement) to the desired level. Then, it is directly provided to the circuit of the HomeBloC® Basic.
This temperature can be directly used for space heating without being reduced by the flat station. A differential pressure valve avoids whistling noises and hydraulic problems.
Wall-mounted or flush-mounted cupboard must be ordered separately. See accessories.
