HomeBloC®
Flat
stations

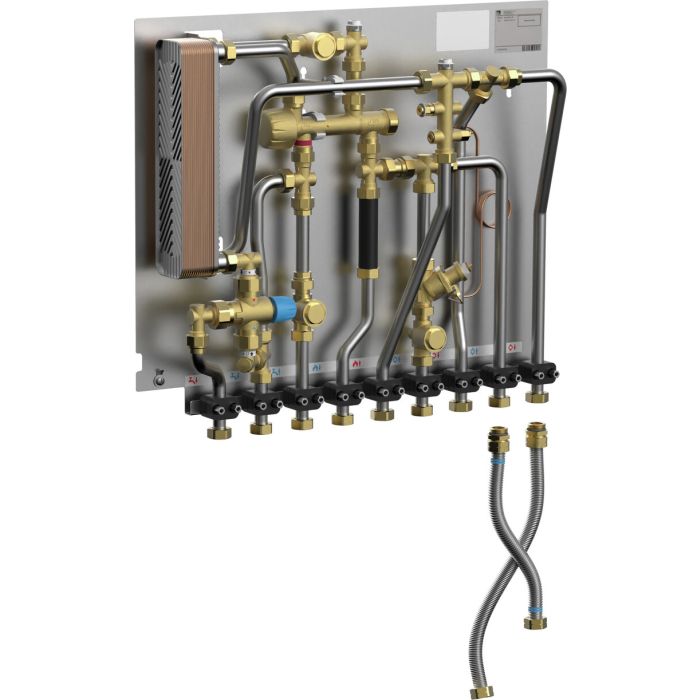

HomeBloC® Basic WRF
for properties with radiator circuits or radiant floor circuits operated at the same time
Wall-mounted or flush-mounted cupboard must be ordered separately.
Wall-mounted or flush-mounted cupboard must be ordered separately.
| paw_waermetauscher_werkstoff | Copper solder, stainless steel plates |
|---|
Operating data
Max. operating pressure heating system:
2.5 bar
Max. operating pressure domestic hot water:
10 bar
Max. operating temperature domestic hot water:
65 °C
Max. operating temperature heating system:
85 °C
Output capacity (10 ->45°C):
12 l/min (equates to 30 kW), 16 l/min (equates to 40 kW), 20 l/min (equates to 49 kW)
Heating capacity:
8.5 kW (when ΔT = 15 K)
Dimensions
Base plate station:
W = 660 mm, H = 555 mm, D = 100 mm
Flush-mounted cupboard:
W = 750 mm, H = 685, D = 10 mm
Cover frame (flush-mounted cupboard):
W = 750 mm, H = 555 mm, D = 110 mm
Wall-mounted cupboard:
W = 750 mm, H = 555 mm, D = 150 mm
Total dimensions:
W = 750 mm, H = 1,436 mm
Adjustment range of the base:
0 - 80 mm
Domestic hot water supply:
3 x ¾" int. thread (flat-sealing and self-sealing)
Heat supply:
2 x ¾" int. thread (flat-sealing and self-sealing)
Heating circuit outlets:
2 x ¾" int. thread (flat-sealing and self-sealing)
Materials
Valves and fittings:
Brass, approved for potable water
Gaskets:
Fibre composite / EPDM / Teflon
Base plate / Flush-mounted cupboard:
zinc-galvanised steel sheet
Cover frame, door, base cover:
Steel sheets, powder-coated, white (RAL 9016)
Pipes:
Stainless steel (1.4401), approved for potable water
The HomeBloC® Basic in the WRF version joins both heating circuit versions WR and WF.
With this version, either the radiator circuit or the radiant floor circuit can be operated at the same time. Thus both functions are joined in one module.
Wall-mounted or flush-mounted cupboard must be ordered separately. See accessories.
With this version, either the radiator circuit or the radiant floor circuit can be operated at the same time. Thus both functions are joined in one module.
Wall-mounted or flush-mounted cupboard must be ordered separately. See accessories.
