Valves/Fittings

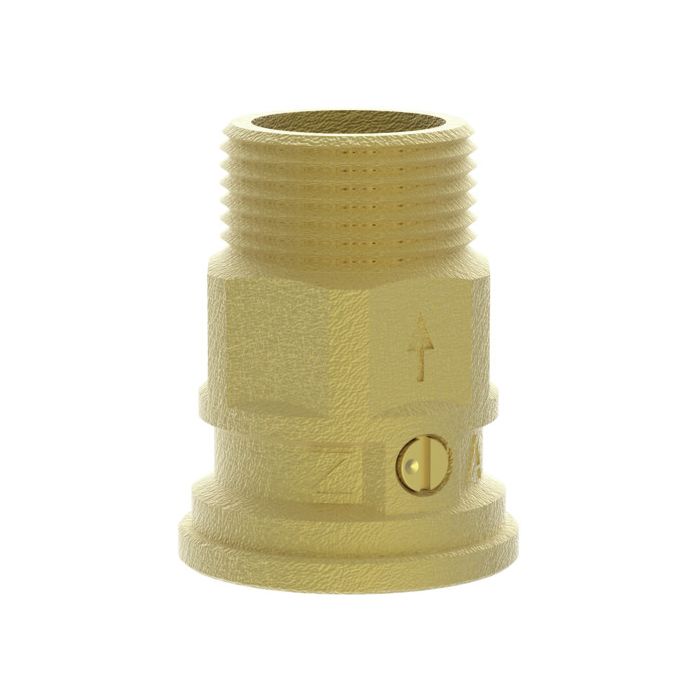

SBE - ext. thread with automatic air passage DN 25
Check valve, can be opened, with automatic air passage,
with external thread and PAW flange for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
with external thread and PAW flange for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
Operating data
Max. operating temperature:
120 °C
Max. operating temperature:
120 °C
Nominal pressure:
10 bars
Opening pressure:
200 mm wc
Equipment
Characteristics:
can be opened manually,to be directly screwed to the pump,suitable for horizontal and vertical installation,with union nut, gasket and PAW flange,one side PAW flange, other side external thread
Dimensions
Nominal diameter:
DN 25 (1")
Connection top:
1"
Connection bottom:
1"
Connection:
F 1" x 1½" ext. thread
Connection external thread:
1"
PAW flange (without nut):
1"
Length:
57 mm
Materials
Valves and fittings:
Brass
Check valve, can be opened, with automatic air passage,
with external thread and PAW flange for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
with external thread and PAW flange for warm water central heating PN 10, 120 °C.
Suited for horizontal and vertical installation.
Can also be used as non return valve.
To be directly screwed to the pump.
Opening pressure 200 mm wc
